Bed Head Panel Supplier in India – Extruded Aluminum Hospital Bed Head Consoles
Bio Meditech assists hospitals, nursing homes, ICUs, and medical facilities across India with designing, supplying, assembling, and installing certified Extruded Aluminum Hospital Bed Head Consoles, ICU Dual Channel Bedside Trunking Systems, and HTM 02-01 Compliant Bed Head Units.
Material Profile
Extruded Aluminum 6063-T6
Standards
HTM 02-01 / NFPA 99
Safety Isolation
Triple Duct Segregation
Service Scope
Lucknow & Pan-India

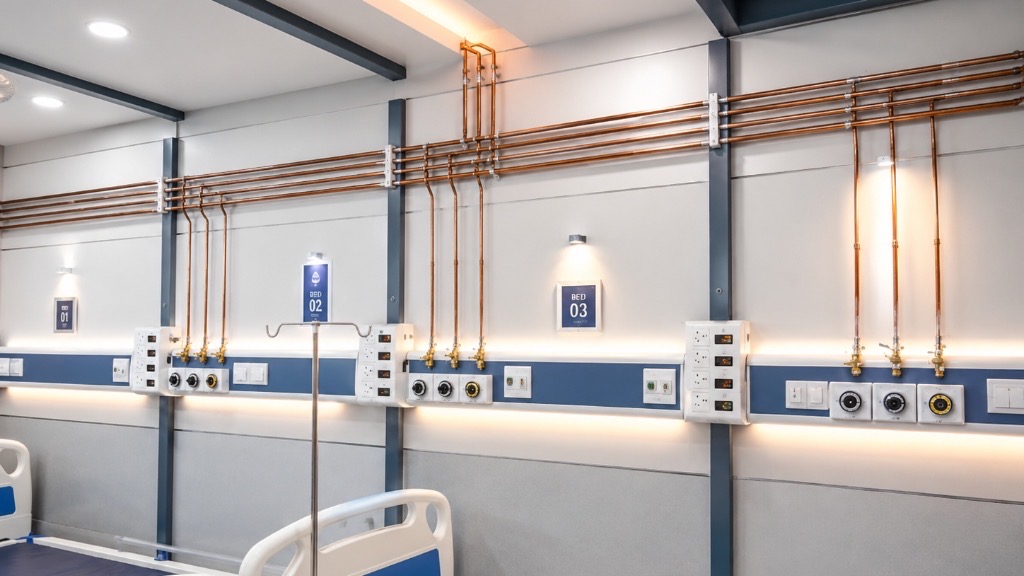

Bed Head Panel Models & Installation Showcase
Explore Bio Meditech's extruded aluminum bed head consoles, ICU trunking systems, and gas outlet layouts. Click any model to view high-resolution photography and engineering specifications.

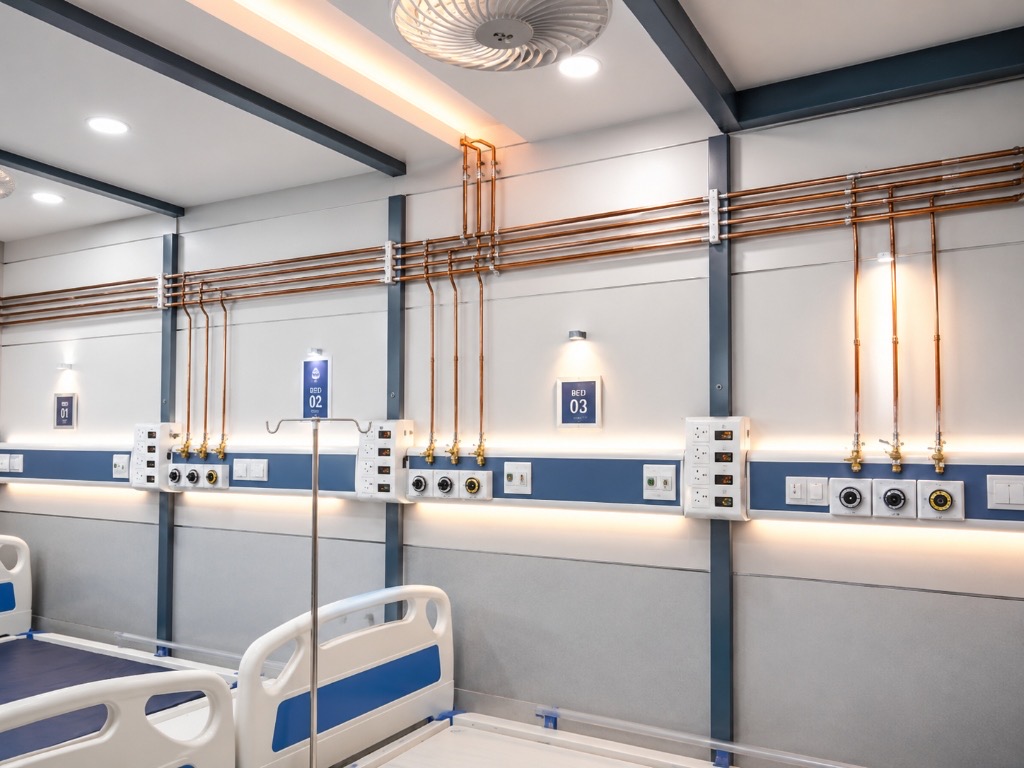

Extruded Aluminum Hospital Bed Head Console

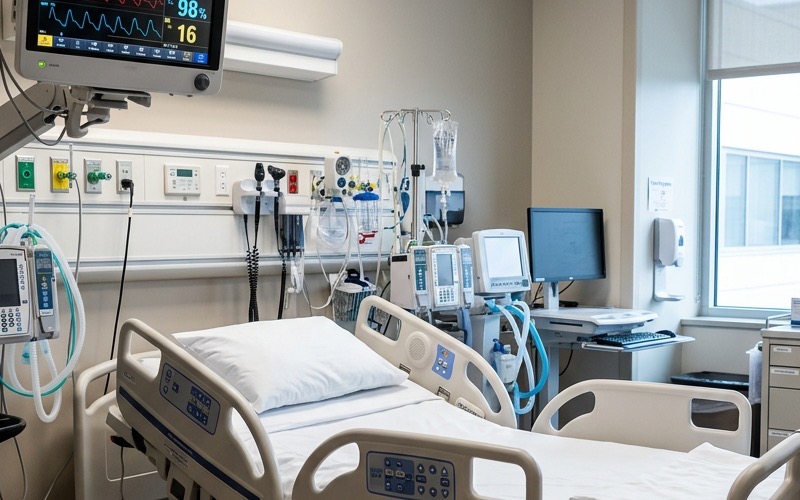

ICU Dual Channel Bedside Trunking System

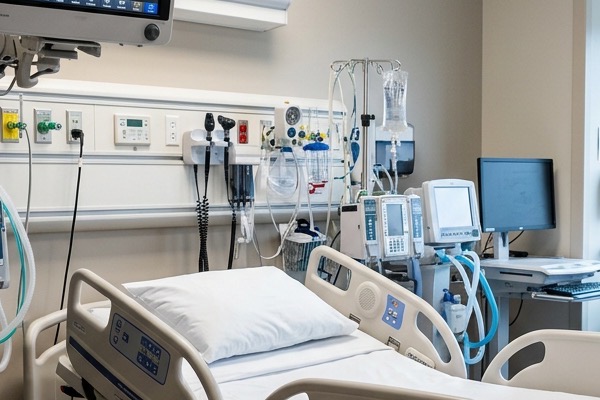

BS & DIN Standard Medical Gas Terminal Outlets

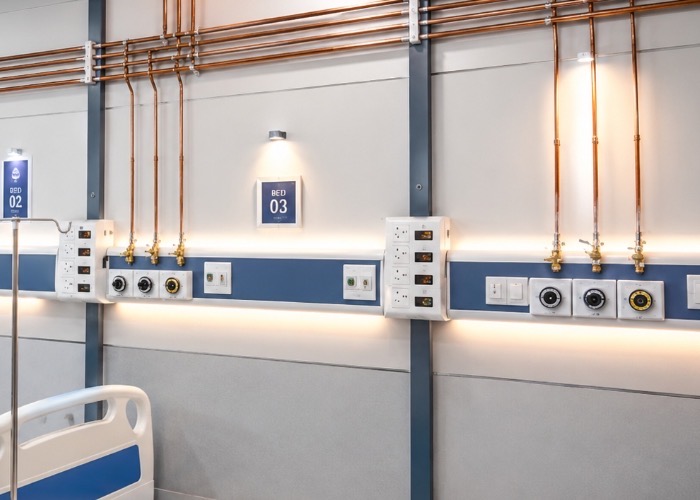

Continuous Horizontal Hospital Bed Head Trunking

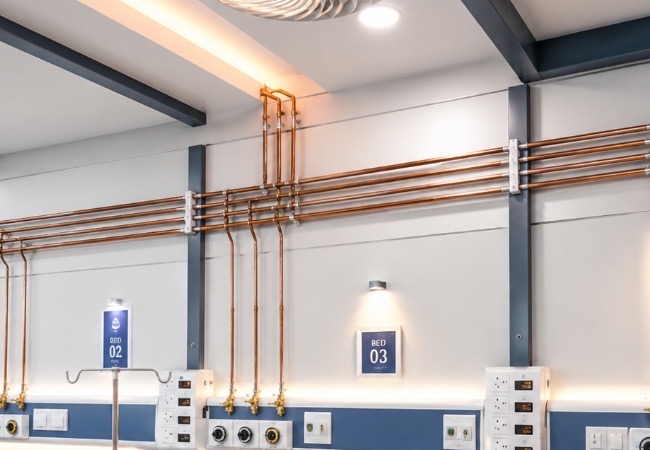

Degreased Copper Pipeline Silver Brazing

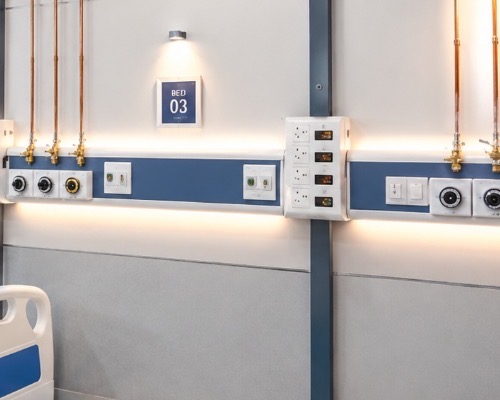

Segregated Electrical, Nurse Call & Grounding

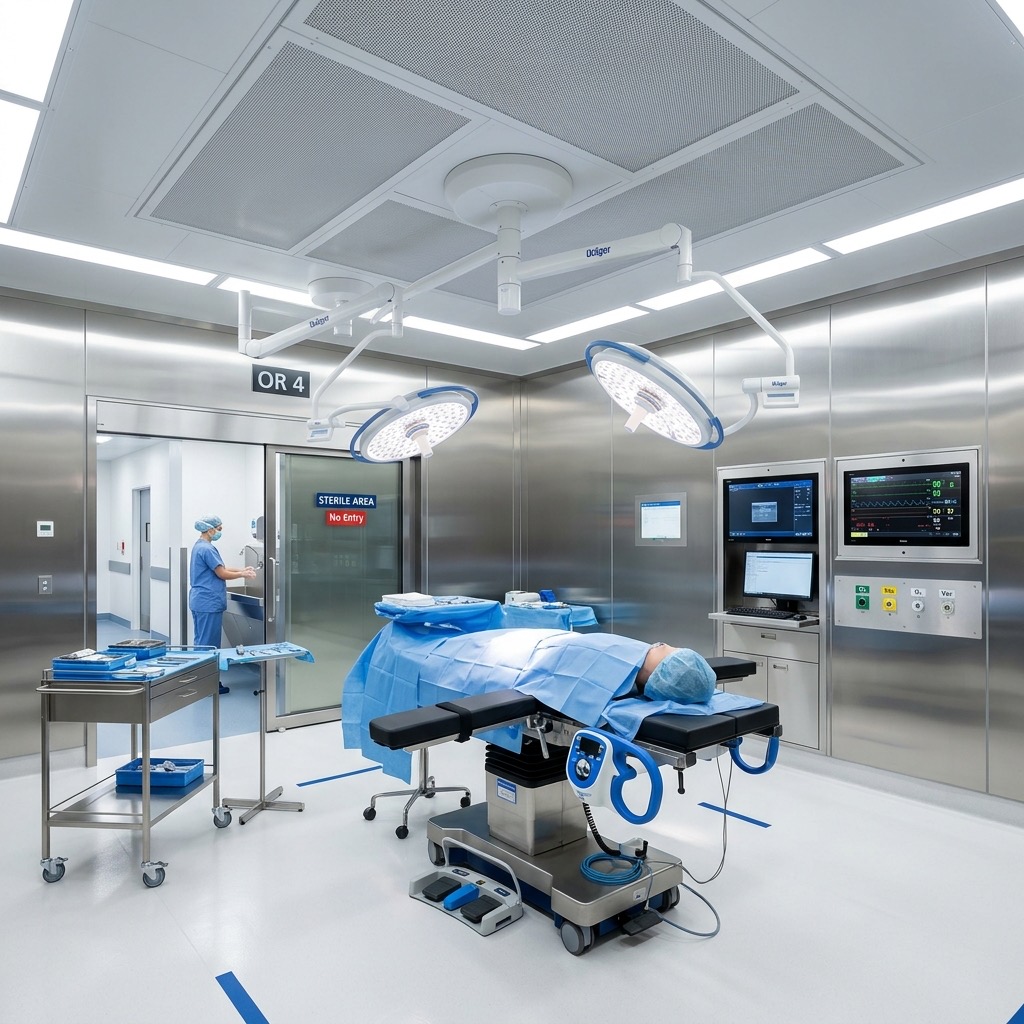

Modular OT & PACU Bedside Utility Panel

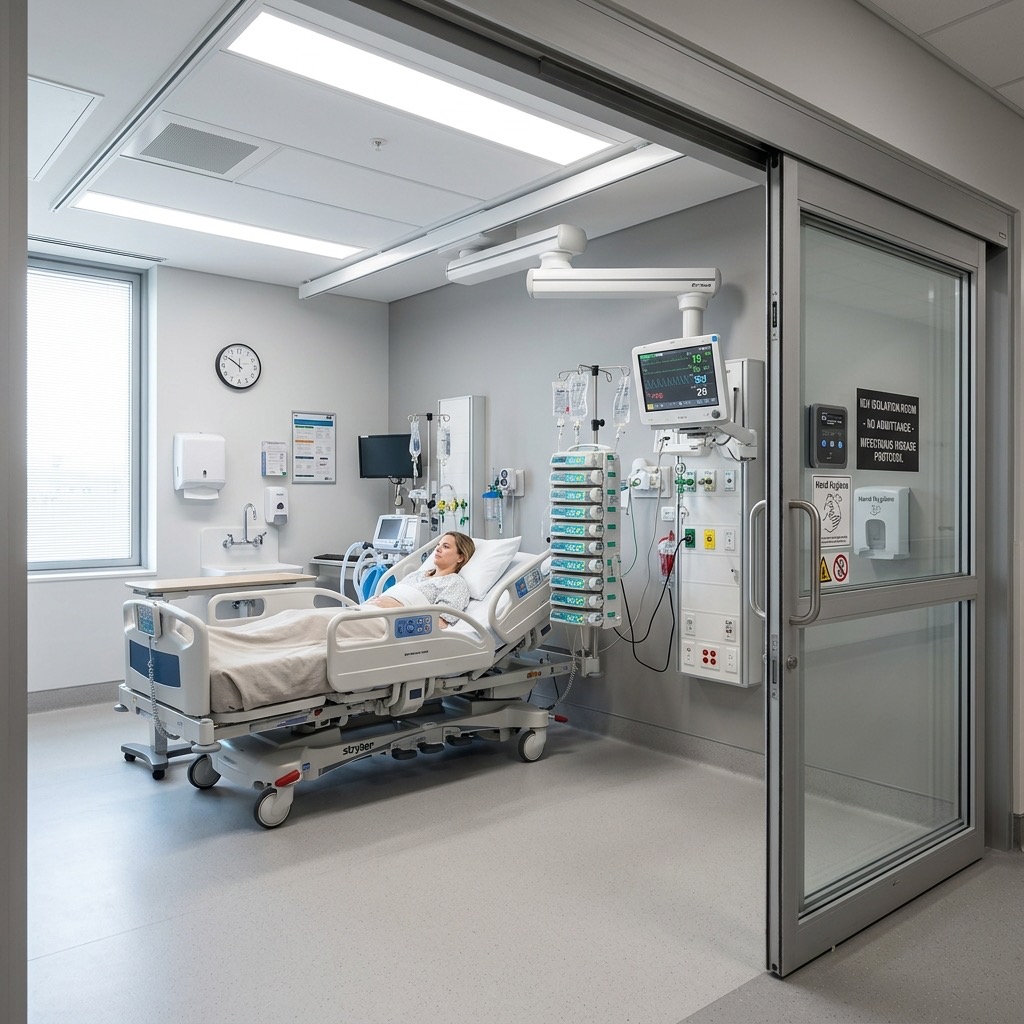

Critical Care Multi-Duct Architectural Suite

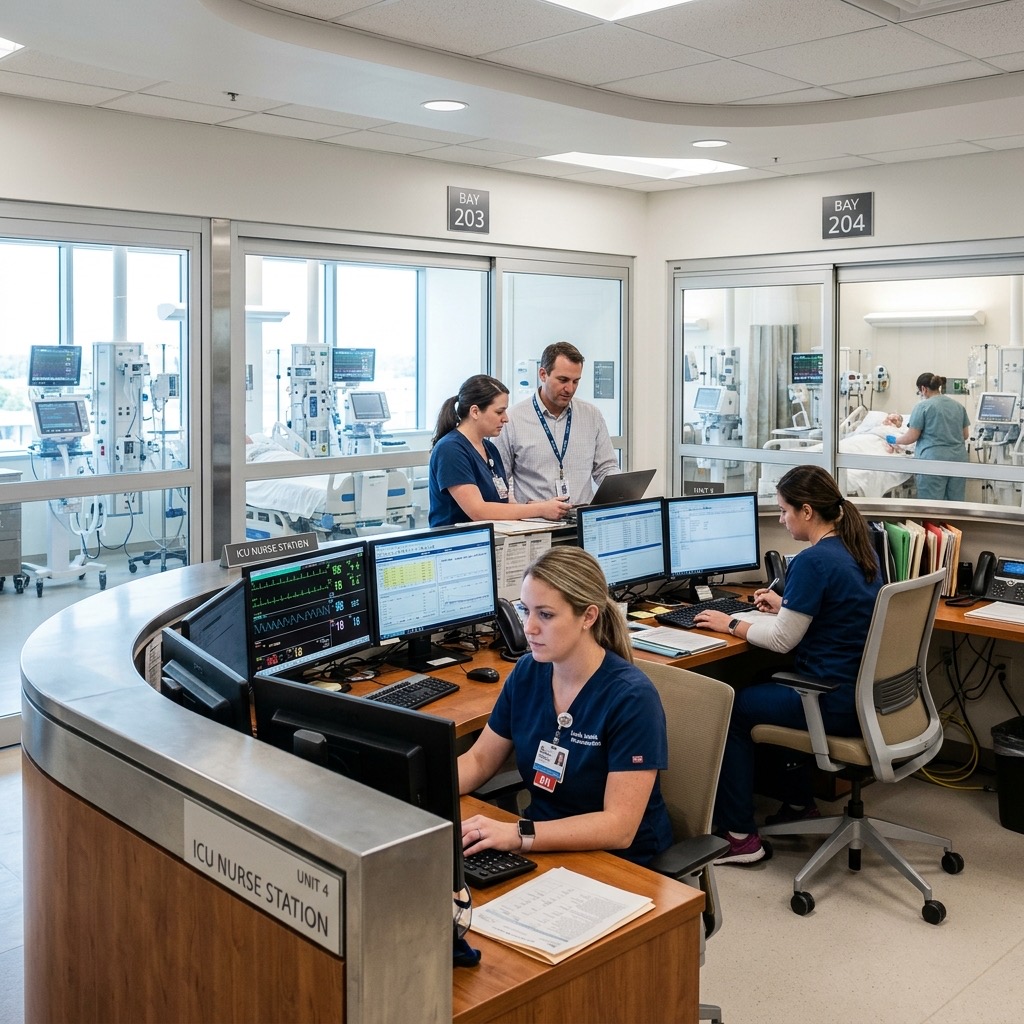

HTM 02-01 Pressure Testing & NABH Handover
Transparent Price Range & Institutional Tenders
Bio Meditech provides direct hospital procurement pricing with no intermediary distributor markups. Indicative pricing guidelines for Indian healthcare facilities:
Single Channel Ward Bed Head Panel:
₹3,500 – ₹6,500 / meter
Extruded aluminum, 2 gas outlets, 2 switch sockets, general ward
Dual Channel Ward Bedside Console:
₹7,000 – ₹12,500 / bed
1.5m console, 3 gas outlets, 4 power sockets, LED reading lamp, nurse call
ICU Triple Channel High-Density Trunking:
₹14,000 – ₹26,000 / bed
1.8m-2.4m, 4-6 gas outlets, 8 sockets, equipment DIN rail, POAG ground
Modular OT / Architectural Wall Console:
₹28,000 – ₹45,000+ / suite
Continuous pre-op/recovery wall trunking, multi-monitor brackets, AGSS
Top Buyer Search Queries Covered
10-Competitor Head-to-Head Benchmark Analysis
Bio Meditech benchmarked against leading Indian & international medical gas trunking brands (including AmcareMed, Hospitech, Allied Medical, Delta P, Narang Medical, GPC Medical, Silbermann, Western Surgicals, PMPS, and BeaconMedaes) across technical parameters:
| Specification Parameter | Bio Meditech Engineering | Standard Market Practice (10 Brands) | Clinical Advantage |
|---|---|---|---|
| Profile Material & Wall Thickness | 6063-T6 Extruded Aluminum Alloy (2.0mm heavy gauge) with anti-microbial powder coat | 1.2mm to 1.5mm commercial aluminum or bent sheet metal (prone to flexing under monitor arms) | Superior rigidity; supports heavy ICU monitor arms without wall detachment |
| Internal Chamber Isolation | Triple-Chamber full physical aluminum barriers (Gas, High-Voltage 220V, Low-Voltage Data) | Single hollow cavity with plastic clips or dual duct with partial wire separation | HTM 02-01 compliance; eliminates fire hazards and EMI noise on ECG cables |
| Medical Gas Outlets Standard | BS 5682 / DIN 13260-2 color-coded with dual O-ring safety seal & maintenance shutoff valve | Standard single O-ring brass terminals with no second-stage maintenance valve | Zero gas leakage; individual outlet can be serviced without shutting down hospital ward line |
| Copper Piping & Silver Brazing | Degreased medical copper pipes (BS EN 13348) silver-brazed under inert N2 purge, 12-bar hold test | Field-soldered or standard plumbing copper without inert gas purging (leaves toxic black soot) | 100% particulate-free pure medical oxygen delivery with zero pressure drop |
| Electrical & Patient Safety Grounding | Universal 6/16A sockets + POAG Equipotential Grounding Studs (IEC 60601-1 compliant) | Standard domestic 6A switches without dedicated POAG equipotential grounding terminals | Prevents micro-shock hazards on ICU dialysis, ventilators, and sensitive biometrics |
| Modular Equipment Rail Integration | Continuous 10x25mm DIN extruded medical equipment rail for flowmeters, pumps & suction jars | External wall-screwed clamps or no equipment mounting provision | Keeps hospital floor clear; supports quick attachment of resuscitation accessories |
| Turnkey Installation & Commissioning | End-to-end turnkey mounting, copper gas tie-in, 24-hr pressure testing, and NABH certificate | Box delivery only; third-party local plumbers must handle dangerous gas connections | One-stop accountability with factory biomedical engineers & AMC support |
Medical Gas Pipeline Bedside Console Overview
Engineered for patient bedside ergonomics, clinical gas distribution & electrical safety
As a leading Bed Head Panel Supplier in India, Bio Meditech manufactures, supplies, and installs modular hospital bedside trunking consoles for ICUs, general wards, HDUs, and specialty recovery rooms. A Medical Gas Pipeline Bedside Console integrates medical gas terminal outlets, electrical sockets, reading lamps, and nurse call systems into a streamlined wall-mounted architectural profile.
Our consoles are manufactured from high-grade Extruded Aluminum Hospital Bed Head Consoles (6063-T6 alloy) finished with anti-microbial electrostatic powder coating. They feature dedicated internal channels that maintain a Segregated Power and Medical Gas Console layout, ensuring physical separation between high-voltage power lines, low-voltage nurse call signals, and copper gas tubing.
From single-bed ward trunking to heavy-duty ICU Dual Channel Bedside Trunking Systems equipped with integrated equipment mounting rails, our units comply with HTM 02-01 Compliant Bed Head Unit guidelines and facilitate NABH Accredited Hospital Bed Head Installation.
Technical Specifications & Engineering Parameters
Extruded aluminum alloy 6063-T6, 2.0mm thickness, anti-bacterial powder coat
Triple duct / Dual duct physical aluminum barrier isolation (Gas / Power / Data)
BS 5682 / DIN 13260-2 color-coded quick-connect with secondary service shutoff
BS EN 13348 / ASTM B819 degreased medical copper, silver-brazed with N2 purge
Universal 6A / 16A modular switch sockets with POAG equipotential earth pins
Direct LED reading light + indirect ambient examination lamp (>300 lux, CRI >90)
Integrated 10x25mm DIN rail supporting monitor arms, infusion poles & suction jars
HTM 02-01, NFPA 99, BS EN ISO 7396-1, ISO 13485, CE & NABH ready
6-Step Bed Head Panel Turnkey Installation & Verification Process
Hospital Ward & ICU Architectural Audit
Assessing bed spacing, civil wall load capacity, electrical circuit breakers, and medical gas pipeline drop positions.
Custom Extruded Aluminum Sizing & Powder Coating
Precision-cutting 6063-T6 aluminum profiles to exact room lengths (1.2m, 1.5m, 1.8m, or continuous ward runs) with anti-microbial coat.
Degreased Copper Pre-Piping & Nitrogen Purging Brazing
Pre-piping degreased copper lines to terminal gas outlets with continuous inert nitrogen purging to prevent inner oxidation.
Wall Mounting & Electrical Conduit Segregation
Securing heavy-duty mounting rails with expansion anchors and pulling isolated 220V power and low-voltage nurse call wiring.
24-Hour 12-Bar Nitrogen Pressure Drop & Flow Calibration
Conducting rigorous 24-hour nitrogen hold tests at 12 bar to ensure zero micro-leaks, followed by terminal flow verification.
Anti-Cross Connection Verification & NABH Handover
Performing gas identity cross-connection tests, issuing HTM 02-01 test certificates, and training nursing staff on outlet operations.
Why Choose Bio Meditech Lucknow
Extruded Aluminum Manufacturing: Precision-engineered 6063-T6 aluminum consoles with anti-bacterial powder coat finishes.
HTM 02-01 & NABH Compliance Support: Providing certified gas outlets, pressure test certificates, and ISO documentation.
Lucknow Technical Base: Direct dispatch across UP & Bihar, fast delivery, and on-site biomedical engineering installation.
Comprehensive AMC & Spares Support: Local stock of replacement gas outlet blocks, electric sockets, and nurse call plates.
Frequently Asked Questions (FAQs)
What is the price of a hospital bed head panel in India?
In India, hospital bed head panel pricing ranges from ₹3,500 to ₹6,500 per running meter for basic single-channel general ward consoles, ₹7,000 to ₹12,500 per bed for dual-channel consoles with LED lights and 3-4 gas outlets, and ₹14,000 to ₹26,000 per bed for heavy-duty ICU triple-duct consoles with equipment mounting rails and POAG grounding. Bio Meditech provides direct manufacturer pricing and customized GeM tender BOQ quotations.
What aluminum grade and finish are used for Bio Meditech bed head panels?
Our bed head panels are manufactured from high-grade 6063-T6 architectural extruded aluminum alloy profiles (2.0mm heavy gauge) treated with anti-bacterial electrostatic powder coating (RAL 9002/9010 or hospital custom colors) for high scratch resistance and disinfection durability.
How are electrical sockets separated from medical gas lines inside the console?
Our consoles feature separate internal aluminum chambers that physically segregate high-voltage 220V power cables, low-voltage nurse call/RJ45 wires, and copper gas lines. This triple-duct design complies with HTM 02-01 and NFPA 99 standards, completely eliminating spark proximity to oxygen lines and shielding monitoring signals from electromagnetic interference.
What gas terminal outlet standards are supported?
We integrate color-coded quick-connect gas outlets adhering to British Standard (BS 5682), German Standard (DIN 13260-2), or American Ohmeda/Chemetron standards. Outlets include a second-stage maintenance shutoff valve allowing seal replacement without shutting down ward supply lines.
Can patient monitors and infusion pumps be mounted directly on the bed head panel?
Yes, our ICU dual and triple channel consoles feature integrated heavy-duty 10x25mm DIN medical equipment rails. These support monitor arm mounting brackets, multi-channel infusion pump clamps, and vacuum suction bottle baskets directly on the console.
What documentation is provided for NABH hospital accreditation?
Bio Meditech provides complete turnkey compliance packages including ISO 13485 / CE certificates, 24-hour nitrogen pressure drop test logs, gas identity anti-cross connection certificates, and electrical equipotential grounding reports required for NABH hospital accreditation audits.
Do you supply bed head panels across UP, Bihar, and North India?
Yes, Bio Meditech is headquartered in Lucknow and handles direct supply, wall mounting, gas pipeline connection, pressure testing, and service across Lucknow, Kanpur, Varanasi, Gorakhpur, Prayagraj, Noida, Patna, and all surrounding regions.
Need Technical Guidance?
Speak with our MGPS engineers
Call us directly to discuss console lengths, gas outlet counts, nurse call integration, or to request a detailed price quotation per bed or running meter.
