Hermetic Door Supplier in India – Automatic OT Sliding Cleanroom Doors
Bio Meditech manufactures, supplies, and installs certified Automatic Sliding Operation Theatre Doors, 4-Way Airtight Hermetically Sealed OT Doors, and Lead-Shielded Radiation Protection Doors for hospitals, Cath Labs, CT suites, and sterile cleanroom corridors across India.
Track Action
4-Way Drop & Slide
Blade Material
SS 304 / HPL Compact
Radiation Core
2mm - 3mm Lead (Pb)
Service Scope
Lucknow & Pan-India
Hermetic Door Models & Installation Showcase
Explore Bio Meditech's automatic sliding hermetic doors, lead-lined radiation shielding doors, and stainless steel cleanroom doors. Click any model to view high-resolution photography and technical parameters.

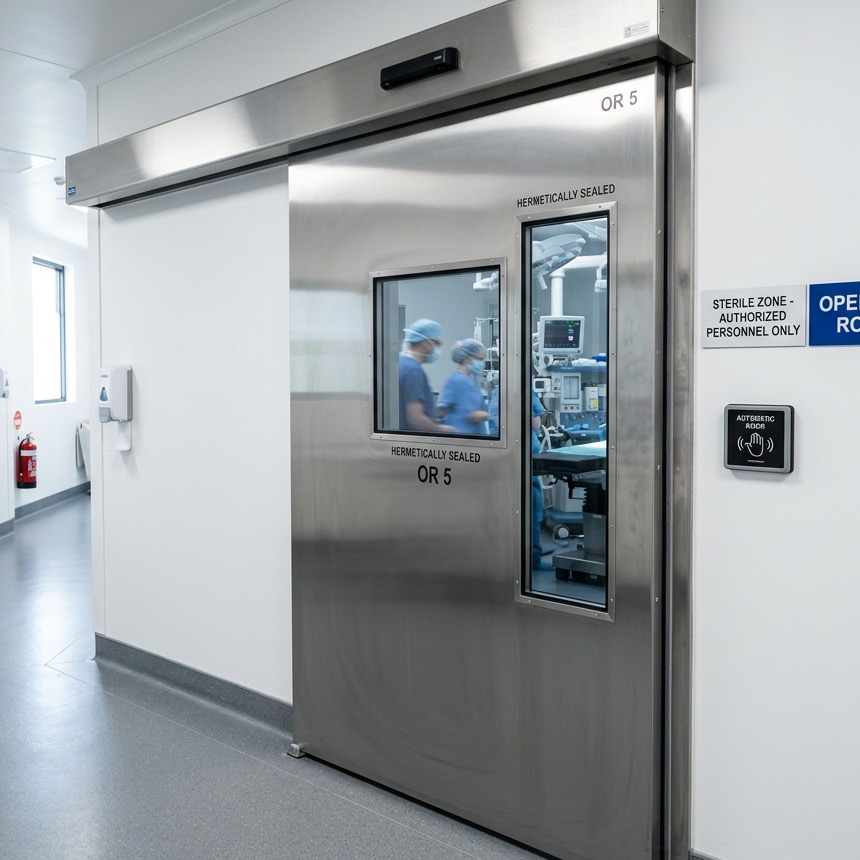

Automatic Sliding Operation Theatre Door
4-Way Airtight Hermetically Sealed OT Door
Lead-Shielded Radiation Protection Door
Flush Double-Glazed Cleanroom Vision Window
Touchless Sensor Activation System
SS 304 Stainless Steel Cleanroom Door Blade
High-Pressure Compact Laminate (HPL) Door
Automatic Floor EPDM Drop Seal
AERB & NABH Cleanroom Validation Handover
Transparent Price Range & Institutional Tenders
Bio Meditech provides direct hospital procurement pricing with no intermediary dealer commissions. Indicative pricing guidelines for Indian healthcare facilities:
Manual Hermetic Cleanroom Door (HPL / GI):
₹85,000 – ₹1,45,000
Manual sliding with drop seal, flush double glass vision, SS handle
Automatic Sliding Hermetic OT Door (HPL Leaf):
₹1,85,000 – ₹2,90,000
Brushless motor, foot switch + wave sensor, 4-way hermetic track, backup battery
Automatic Sliding Hermetic Door (SS 304 Leaf):
₹2,60,000 – ₹3,80,000
Heavy-gauge SS 304 satin finish blade, PUF core, airtight drop seal, safety sensors
Lead-Shielded Radiation Protection Door (2mm-3mm Pb):
₹3,40,000 – ₹5,50,000+
Monolithic lead core, lead-glass vision window, heavy-duty motor, AERB compliant
Top Buyer Search Queries Covered
10-Competitor Head-to-Head Benchmark Analysis
Bio Meditech benchmarked against leading cleanroom & hospital door manufacturers (including Manusa, Besam/ASSA ABLOY, Dortek, Dormakaba, Metaflex, Narang Medical, GPC Medical, Hospitech, SI Surgical, and Delta P) across technical parameters:
| Specification Parameter | Bio Meditech Engineering | Standard Market Practice (10 Brands) | Clinical Advantage |
|---|---|---|---|
| Hermetic Track Sealing Mechanism | 4-Way drop-and-slide track (drops 15mm down and 10mm in) compressing 4-sided EPDM gaskets | Standard straight horizontal sliding tracks with loose brush seals that leak conditioned clean air | Airtight hermetic seal; holds positive room pressure (+15 Pa) with zero air loss |
| Door Blade Infill & Insulation | High-pressure injected CFC-free Polyurethane Foam (PUF, 50kg/m³ density) with aluminum perimeter frame | Low-density polystyrene (thermocol) or paper honeycomb prone to denting and thermal sagging | Superior acoustic dampening (32 dB reduction) and high impact resistance against surgical trolleys |
| Lead Shielding Continuity (AERB) | Monolithic 2mm / 3mm chemical lead sheet without seams; overlapping lead in aluminum frame & jambs | Tacked lead sheets with gaps at edges and screw holes that leak scattered ionizing radiation | Guaranteed 100% AERB radiation safety compliance for Cath Labs and hybrid OTs |
| Drive Motor & Reliability | 100W Brushless DC motor with intelligent micro-controller, anti-pinch sensor & battery backup | Traditional brushed motors that wear out carbon brushes, overheat, and produce electrical noise | Ultra-quiet (<45 dB) continuous 24/7 duty cycle with smooth acceleration and deceleration |
| Cleanroom Vision Window | Flush double-glazed toughened safety glass with desiccated aluminum spacers (completely flush with blade) | Surface-mounted raised aluminum frame creating ledges that trap dirt and harbor bacterial biofilms | Easy, rapid wipe-down disinfection meeting NABH sterile cleanroom standards |
| Hands-Free Cleanroom Activation | Microwave contactless hand-wave sensors, foot kick switches & dual safety infrared light curtains | Mechanical push buttons or standard PIR sensors that falsely trigger from corridor traffic | Eliminates cross-contamination; prevents door from closing while surgical beds pass |
| Turnkey Installation & Validation | Turnkey civil opening reinforcement, track mounting, smoke pen airtight test & AERB radiation logs | Crated door delivery only; leaves electrical wiring and alignment to general site carpenters | Single-source manufacturer accountability with dedicated biomedical engineers |
Hospital Hermetic Cleanroom Door Engineering Overview
Airtight pressure barrier, touchless hygiene access & AERB radiation containment
As a leading Hermetic Door Supplier in India, Bio Meditech designs, manufactures, and installs high-performance automatic sliding hermetic doors for modular operation theatres, intensive care isolation suites, and medical imaging departments.
Our doors utilize an engineered 4-way drop-and-slide track system. During the final travel stroke, the door blade drops 15mm downward onto the floor and shifts 10mm inward toward the wall frame, compressing continuous multi-chamber EPDM rubber gaskets on all four sides. This hermetic seal preserves sterile cleanroom air pressure differentials (+15 to +20 Pascals) and stops airborne infection cross-contamination.
Available in SS 304 Stainless Steel or anti-bacterial High-Pressure Compact Laminate (HPL), our doors can be custom-ordered with 2mm to 3mm continuous lead shielding and lead-glass vision panels certified for AERB radiation containment in Cath Labs, CT scanner rooms, and hybrid surgical suites.
Technical Specifications & Engineering Parameters
4-Way airtight hermetic seal (Class 4 per EN 12207), holding >100 Pa pressure
SS 304 (1.0mm) or Antibacterial HPL (4mm-6mm) with 50kg/m³ injected PUF core
Optional 2mm to 3mm seamless chemical lead sheet (99.9% Pb) for Cath Lab/X-Ray
100W Brushless DC motor, microprocessor control, 150-500mm/s variable speed
Touchless microwave hand wave sensors, foot kick switches & IR safety light curtains
Flush double-glazed toughened glass / Lead-glass (300x600mm or custom)
Auto-reverse obstacle detection, emergency manual release (<3.5kg force), battery backup
EN 16005 (Safety), EN 12207 (Airtightness), AERB Radiation Safety, NABH & CE
6-Step Hermetic Door Turnkey Installation & Verification Process
Civil Wall Opening & Structural Header Audit
Checking plumb line verticality, floor levelness, and installing heavy-gauge steel support lintels to carry sliding track loads.
Precision Extruded Aluminum Track & Jamb Mounting
Securing the 4-way drop-and-slide track rail with vibration isolators, aligning aluminum subframes with laser spirit levels.
Door Blade Hanging & PUF Core Alignment
Suspending the SS 304 or HPL door blade onto heavy-duty nylon trolley rollers and adjusting suspension bolts for perfect balance.
Brushless Motor & Safety Sensor Harness Wiring
Connecting the microprocessor controller, touchless hand-wave switches, foot switches, infrared safety beams, and backup battery pack.
4-Way Drop-Seal Calibration & Floor Clearance Tuning
Fine-tuning the 15mm downward drop action so the bottom EPDM gasket seals firmly against finished floor without floor drag.
Smoke Air-Leakage Integrity Testing & NABH/AERB Handover
Verifying airtight pressure retention (+15 Pa), conducting radiation survey meter checks for lead doors, and training hospital staff.
Why Choose Bio Meditech Lucknow
True 4-Way Drop Hermetic Seal: Inward and downward drop cam action compressing heavy-duty EPDM gaskets on all 4 sides.
Certified Radiation Protection: Seamless monolithic lead cores with zero radiation leakage around frames, certified for AERB audits.
Touch-Free Hygienic Operation: Sensor-driven contactless access preventing bacterial cross-contamination in surgical zones.
Direct Engineering Team in UP: Factory-trained biomedical engineers based in Lucknow for fast dispatch, installation, and AMC.
Frequently Asked Questions (FAQs)
What is the price of an automatic hermetic sliding OT door in India?
In India, hospital hermetic door pricing ranges from ₹85,000 to ₹1,45,000 for manual hermetic cleanroom sliding doors, ₹1,85,000 to ₹2,90,000 for automatic sliding hermetic doors with HPL finish and touchless sensors, ₹2,60,000 to ₹3,80,000 for premium SS 304 stainless steel automatic hermetic doors, and ₹3,40,000 to ₹5,50,000+ for lead-shielded radiation protection doors (2mm-3mm Pb with lead glass) for Cath Labs and X-Ray rooms. Bio Meditech provides direct manufacturer pricing and customized GeM tender BOQ quotations.
How does the 4-way hermetic sealing mechanism work?
Unlike ordinary sliding doors that simply roll horizontally, a hermetic door track incorporates a specialized cam incline at the closing position. When the door reaches the closed point, it drops 15mm downward onto the floor and shifts 10mm inward toward the door frame. This mechanical movement firmly compresses continuous silicone/EPDM gaskets against the wall and floor, creating an airtight seal that prevents pressure loss.
What lead thickness is required for Cath Lab and X-Ray room radiation doors?
Under Atomic Energy Regulatory Board (AERB) guidelines in India, diagnostic X-Ray and CT rooms typically require 2.0mm lead equivalence (Pb), while Cath Labs, interventional radiology suites, and radiotherapy rooms frequently require 2.5mm to 3.0mm lead equivalence. Bio Meditech provides custom-calculated lead sheet cores with certified lead glass vision panels.
What is the difference between an HPL door blade and an SS 304 door blade?
An HPL (High-Pressure Laminate) door blade features an anti-bacterial resin-impregnated compact sheet available in various hospital colors, offering high impact resistance and scratch protection. An SS 304 door blade is clad in 1.0mm medical-grade stainless steel with a satin hairline finish, providing ultimate chemical resistance against aggressive sterilizing agents.
What happens to the automatic door during a power failure?
Our automatic hermetic doors include an integrated emergency rechargeable battery backup that provides over 200 open/close cycles during power outages. Additionally, the manual operating force is engineered to be less than 3.5kg, allowing clinical staff to push the door open effortlessly by hand in emergencies.
Does Bio Meditech provide on-site installation and AERB/NABH documentation in UP & India?
Yes. Headquartered in Lucknow, Bio Meditech biomedical engineers handle complete turnkey structural track installation, motor commissioning, airtightness smoke testing, and AERB radiation survey validation across Lucknow, Kanpur, Varanasi, Gorakhpur, Prayagraj, Noida, Patna, and all surrounding areas.
Need Technical Guidance?
Speak with our door automation engineers
Call us directly to discuss wall opening dimensions, lead shielding thickness, sensor configurations, or to request a customized turnkey quotation for your modular operation theatre.
