Medical Air Compressor & Central Compressed Air Plant
100% oil-free medical air systems delivering ultra-pure, dry, and contaminant-free breathing air for ICU ventilators, NICU incubators, anesthesia machines, and 7 bar orthopedic surgical tools with dual desiccant dryers maintaining -40°C pressure dew point.
9 Certified Medical Compressed Air Configurations
Explore our proven oil-free medical air skids, heatless desiccant drying columns, multi-stage filtration assemblies, and central PLC control panels installed across India.

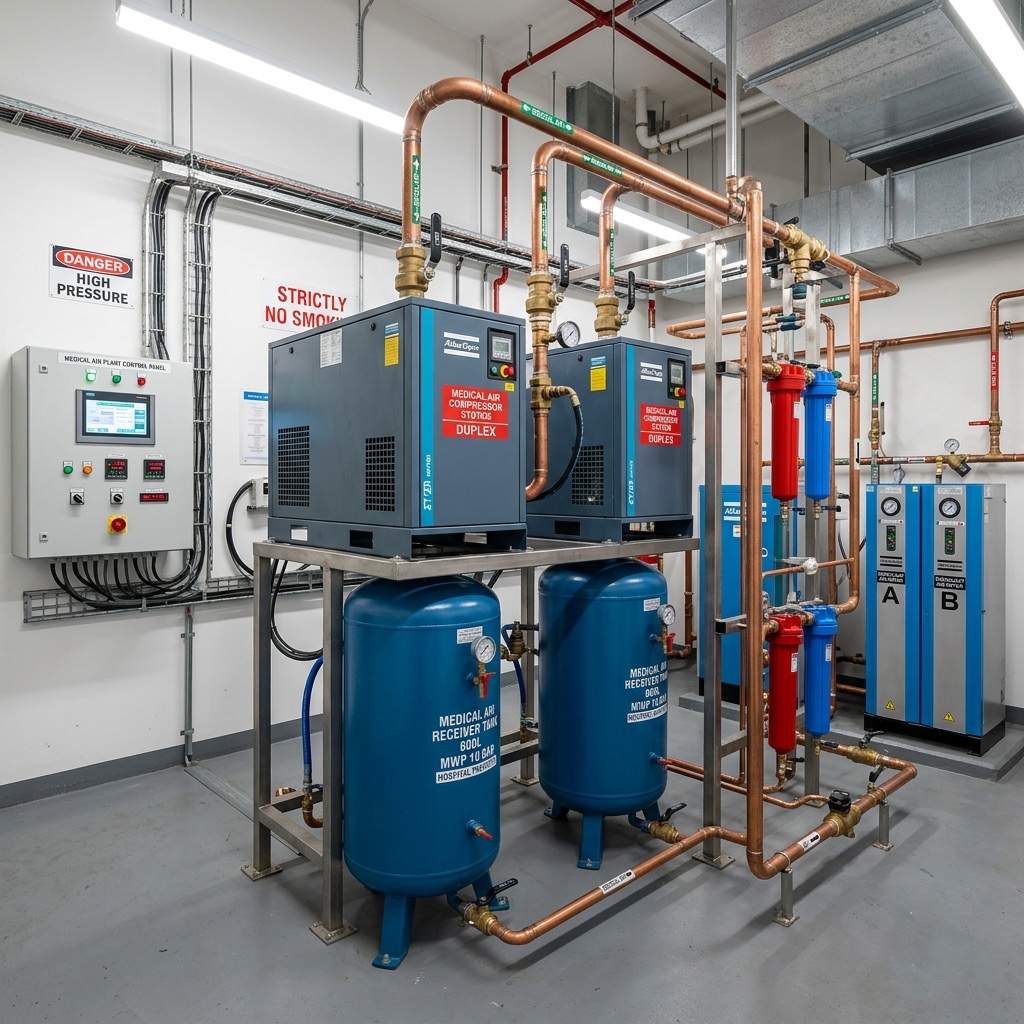

Duplex 100% Oil-Free Medical Scroll Compressor Package
Certified ISO 8573-1 Class 0 oil-free compression chambers delivering 100% pure medical air with zero hydrocarbon vapor risk, engineered with dual scroll blocks and automatic lead/lag alternation for critical care ICU ventilators.
Pharmacopoeia Purity & Uninterrupted Ventilation Security
Engineered according to strict HTM 02-01, ISO 7396-1, and European Pharmacopoeia monographs to ensure that critical care patient breathing air is 100% dry, sterile, and free from toxic vapors.
100% Oil-Free Class 0 Certified
Zero oil injected into compression chambers. Guarantees absolute absence of hydrocarbon aerosols and carbon monoxide breakdown products, eliminating ventilator sensor fouling and patient pulmonary toxicity.
-40°C Desiccant Pressure Dew Point
Twin-tower activated alumina heatless desiccant dryers operating with automatic cycle changeover, removing moisture down to a pressure dew point of -40°C to inhibit bacterial proliferation in medical copper piping.
4-Stage Medical Filtration Train
Sequential pre-filter, sub-micron coalescer, activated carbon tower (residual oil < 0.003 mg/m³), and 0.01-micron sterile HEPA bacterial filter removing 99.9999% of airborne particulates and microbes.

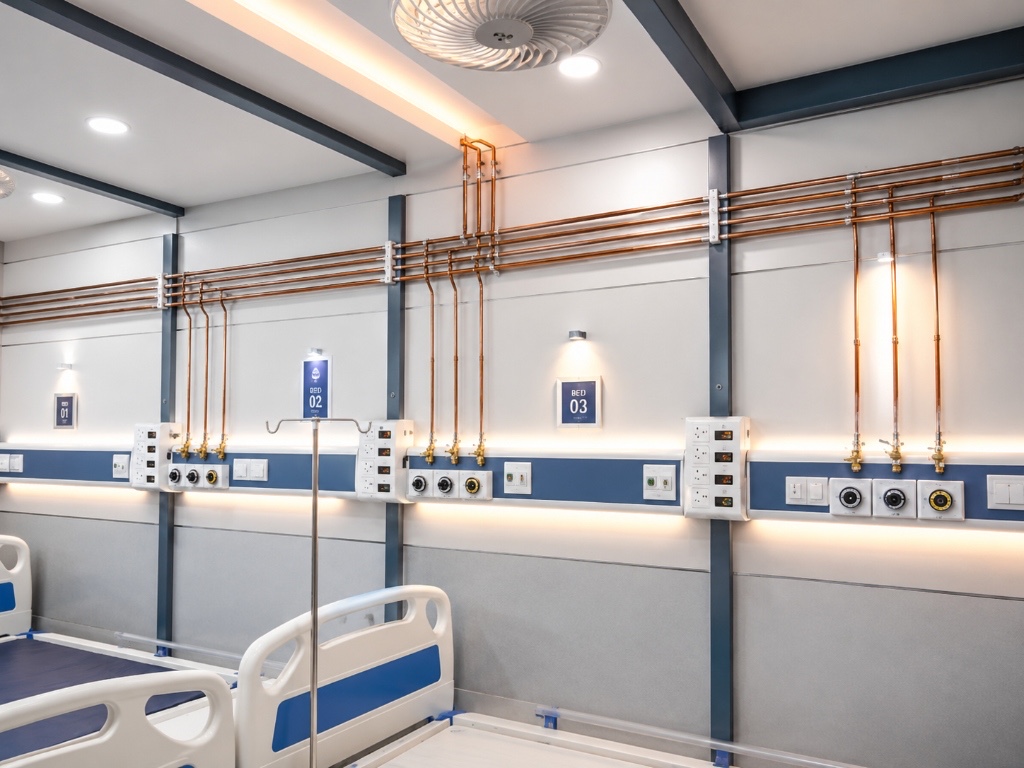

Dual 4 Bar & 7 Bar Pressure Lines
Independent pressure regulator stations providing 400 kPa (4 bar) breathing air for ICU ventilators/anesthesia machines and 700 kPa (7 bar) surgical air for orthopedic power tools and pneumatic reamers.
Online Dew Point & CO Monitoring
Digital ceramic moisture sensor and electrochemical carbon monoxide (CO) gas analyzer providing real-time PPM readouts on the PLC screen with automatic emergency audio-visual alarms to the central nursing station.
Duplex N+1 Redundancy
Automatic lead/lag pump cycling equalizes running hours across compressors. In case of peak surgical demand or primary pump shutdown, the standby compressor starts automatically without clinical pressure drops.
Transparent Medical Air Compressor Pricing (India)
Direct manufacturer supply packages and central hospital compressed air plant pricing. Aligned with GeM tender BOQ norms, HTM 02-01 standards, and private healthcare facility budgets.
Compact Simplex Medical Air Package
- Capacity: 100 to 300 LPM Flow Rate
- Single 100% Oil-Free Scroll Compressor
- 150L to 300L Epoxy Buffer Air Receiver Tank
- Refrigerated / Desiccant Dryer + Particulate Filter
Duplex Medical Air Plant (HTM 02-01)
- Capacity: 500 to 1,500 LPM Displacement
- Twin Oil-Free Scroll Compressors (Duty/Standby)
- Twin Heatless Desiccant Dryers (-40°C Dew Point)
- 4-Stage Filtration Train + PLC Alternation Panel

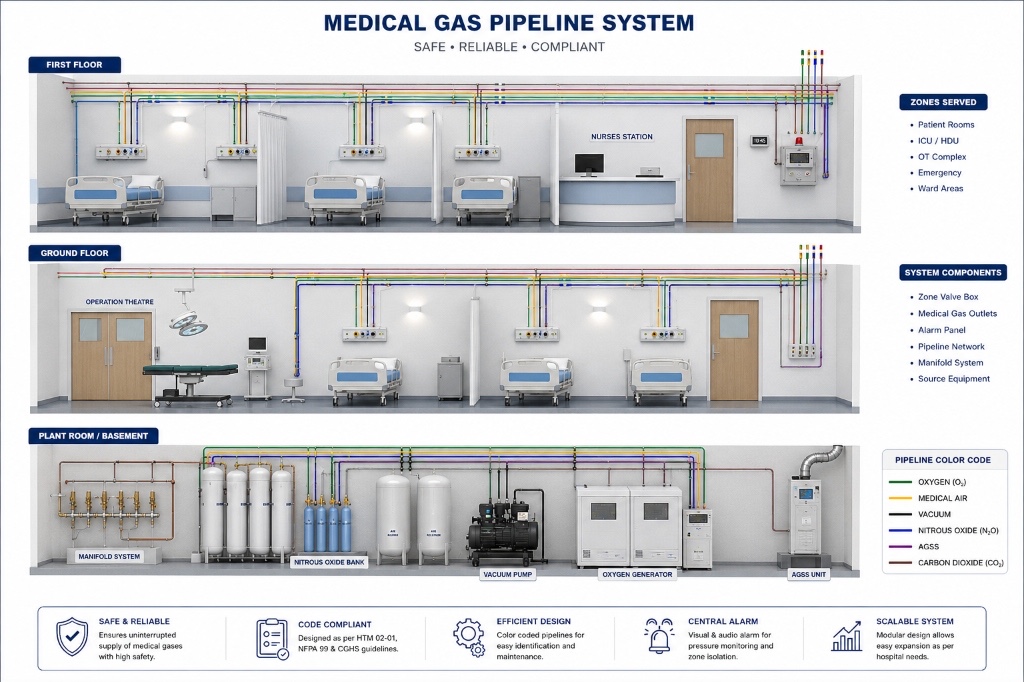

Triplex Critical Care Station (N+1)
- Capacity: 2,000 to 6,000+ LPM High Flow
- Triplex / Quadruplex Compressors with N+1 Standby
- 1,500L to 3,000L Epoxy-Lined Air Storage Tanks
- Online Dew Point & CO Transmitters with BMS Output
Turnkey Plant & Dual Line 4/7 Bar Suite
- Turnkey Plant Room Rigging & Anti-Vibration Inertia Bed
- Degreased Medical Copper Headers & Room Risers
- Dual 4 Bar & 7 Bar Line Pressure Regulating Stations
- Pharmacopoeia Gas Purity Validation & NABH Handover
Head-to-Head 10-Competitor Medical Air Plant Matrix
A comprehensive technical evaluation comparing Bio Meditech against major medical air compressor manufacturers across oil-free certification, desiccant drying dew point, filtration stages, online sensor instrumentation, and UP local service response.
| Brand / System | Compression Type | Air Purity Standard | Dryer Pressure Dew Point | Filtration Train | Online Monitoring | UP Field Service | Price Benchmark |
|---|---|---|---|---|---|---|---|
| Bio Meditech (BM-MAC Series) | 100% Oil-Free Scroll & Tooth | ISO 8573-1 Class 0, HTM 02-01 | -40°C Heatless Desiccant | 4-Stage (Pre + Sub + Carbon + HEPA) | Online Dew Point & CO Transmitters | < 4 Hours (Lucknow Hub) | ₹4,20,000 – ₹24,50,000 (Direct Factory) |
| Atlas Copco (MED Series) | Oil-Free Scroll / Tooth | ISO 8573-1 Class 0 | -40°C Desiccant (MED) | Multi-stage Purifier | Elektronikon + Dew Point | 24 – 48 Hours | ₹12,50,000 – ₹45,00,000 |
| BeaconMedaes (MedAir) | Scroll / Reciprocating | NFPA 99 / HTM 02-01 | -40°C Heatless Towers | Dual Train Filters | TotalAlert Embedded Console | 48 – 72 Hours (Depot based) | ₹14,00,000 – ₹52,00,000 |
| Ingersoll Rand (Nirvana Oil-Free) | Rotary Screw / Scroll | Class 0 Certified | -40°C Desiccant Optional | High-Efficiency Filter Pack | Xe-Series Controller | 24 – 48 Hours | ₹11,00,000 – ₹42,00,000 |
| Pneumatech (PMD Medical) | Scroll Modular Package | HTM 02-01 Standard | -40°C Desiccant Tower | 4-Stage Purifier | Microprocessor Display | 36 – 72 Hours | ₹9,50,000 – ₹35,00,000 |
| BOGE (EO Series) | Oil-Free Scroll Modular | ISO 8573-1 Standard | -40°C Desiccant Dryer | Medical Air Filters | Focus Control 2.0 | 48 – 72 Hours (Metro Only) | ₹13,50,000 – ₹48,00,000 |
| Kaeser (Dental & Med) | Dry Running Reciprocating | Medical Gas Certified | -30°C to -40°C Dryer | Kaeser Sterile Filters | Sigma Control Basic | 24 – 48 Hours | ₹10,50,000 – ₹38,00,000 |
| Amico (Alert-2 Air) | Duplex / Triplex Scroll | NFPA 99 / CSA Standard | -40°C Desiccant Towers | Amico Medical Filter Bank | Touchscreen Master Panel | Overseas Parts / Third-Party | ₹15,00,000 – ₹55,00,000 |
| Ohio Medical (Amvex Air) | Oil-less Scroll System | NFPA 99 Compliant | -40°C Heatless Desiccant | Multi-Stage Filter Set | Color Touchscreen PLC | Import / Slow Dispatch | ₹16,50,000 – ₹58,00,000 |
| United Poly (Medical Air) | Oil-Free Piston / Scroll | Domestic Indian Standards | Refrigerated (+3°C) / Desiccant | 3-Stage Filter Pack | Microprocessor Display | 24 – 48 Hours | ₹3,80,000 – ₹14,00,000 |
6-Step Turnkey Delivery, Rigging & Commissioning
How Bio Meditech engineers execute medical air plant room placement, copper header brazing, desiccant dryer calibration, and European Pharmacopoeia air purity validation for NABH hospital accreditation.
Hospital Air Demand & Diversity Sizing
Biomedical flow audit calculating concurrent 4-bar breathing air consumption (ICU ventilators, NICU incubators, anesthesia machines) and 7-bar surgical tool air using HTM 02-01 diversity factor tables.
Plant Room Rigging & Vibration Isolation
Precision positioning of heavy compressor skids and vertical receiver vessels on anti-vibration inertia bases, ensuring whisper-quiet hospital operation with zero vibration transmission.
Copper Header & Dual Desiccant Hookup
Silver-brazing degreased medical copper piping under nitrogen purge, connecting twin-tower heatless desiccant drying columns, non-return check valves, and full-bore brass ball isolation valves.
4-Stage Filtration & Auto-Drain Piping
Installing sequential 1μ pre-filters, 0.01μ coalescers, activated carbon towers, and sterile HEPA bacterial filters. Hard-piping zero-loss electronic auto-drain lines to the plant room drain trap.
PLC Automation & Gas Sensor Calibration
Wiring 3-phase electrical power, motor thermal overload circuits, and pressure sensors. Calibrating online ceramic moisture transmitters and electrochemical carbon monoxide (CO) gas analyzers.
Pharmacopoeia Purity Validation & NABH Sign-Off
Conducting multi-gas chemical analysis verifying carbon monoxide (< 5 ppm), carbon dioxide (< 500 ppm), water vapor (< 67 ppm), and oil content (< 0.1 mg/m³), issuing signed NABH audit compliance reports.
Medical Air Compressor Procurement & Technical FAQs
Clear technical, regulatory, and financial answers for hospital administrators, ICU directors, and biomedical project consultants.
Why is an 'Oil-Free Class 0' compressor mandatory for hospital medical air?
Standard industrial compressors inject oil into the compression chamber for lubrication and cooling. Even with downstream filters, microscopic oil vapors and aerosolized hydrocarbons can break through into the patient pipeline. When inhaled by critically ill patients on mechanical ventilators, oil aerosol causes lipoid pneumonia and lung damage, and damages delicate ventilator oxygen sensors. Under ISO 8573-1 Class 0 and HTM 02-01 regulations, 100% oil-free compression chambers (scroll or dry tooth) are mandatory.
What is the price of a medical air compressor plant in India?
In India, central medical air plant pricing ranges from ₹1,80,000 to ₹3,50,000 for compact simplex clinic packages (100–300 LPM); ₹4,20,000 to ₹9,80,000 for standard duplex medical air plants (500–1,500 LPM with twin desiccant dryers, 500L–1,000L receiver, 4-stage filters, and PLC); ₹11,00,000 to ₹24,50,000 for large medical college triplex/quadruplex stations (2,000–6,000+ LPM with N+1 redundancy); and ₹18,00,000 to ₹38,00,000+ for complete turnkey plant room suites with dual 4 bar / 7 bar regulators and medical copper headers. Bio Meditech provides direct factory pricing and GeM tender BOQ quotations.
Why is a twin-tower desiccant dryer required instead of a refrigerated dryer?
Refrigerated air dryers can only achieve a pressure dew point of +3°C (above freezing). At this moisture level, condensation can still form inside air distribution piping when ambient temperatures drop, causing copper oxidation and bacterial biofilm colonization. HTM 02-01 and ISO 7396-1 mandate twin-tower heatless desiccant dryers that achieve a pressure dew point of -40°C (atmospheric dew point of -56°C), guaranteeing that air delivered to ICU patient ventilators is bone-dry and sterile.
What is the difference between 4 Bar Medical Air and 7 Bar Surgical Air?
4 Bar Medical Air (400 kPa) is administered directly into the patient’s respiratory airway via mechanical ventilators, CPAP/BiPAP units, and anesthesia gas blenders. It requires European Pharmacopoeia breathable purity. 7 Bar Surgical Air (700 kPa) is used exclusively in Operation Theatres to power pneumatic surgical tools, orthopedic bone saws, drills, and pneumatic tourniquets, requiring higher drive pressure but the same oil-free dryness. Bio Meditech systems feature dual line regulators to feed both lines simultaneously from a single compressor plant.
What chemical purity limits are required by the European Pharmacopoeia?
The European Pharmacopoeia monograph for Medical Air mandates strict maximum contamination limits: Carbon Monoxide (CO) ≤ 5 ppm, Carbon Dioxide (CO2) ≤ 500 ppm, Water Vapor ≤ 67 ppm (-40°C dew point), Oil/Hydrocarbons ≤ 0.1 mg/m³, Sulfur Dioxide (SO2) ≤ 1 ppm, Nitrogen Oxides (NO + NO2) ≤ 2 ppm, and Oxygen concentration stabilized at 20.4% to 21.4% v/v. Bio Meditech conducts on-site chemical testing and provides stamped certificates for NABH accreditation.
Does Bio Meditech provide on-site maintenance and emergency service in Uttar Pradesh?
Yes. Headquartered in Lucknow, our biomedical service division maintains a comprehensive spare parts inventory (scroll heads, desiccant charges, sterile filter cartridges, electronic auto-drains) and provides 24/7 technical support with a guaranteed on-site response time under 4 hours across Lucknow, Kanpur, Varanasi, Gorakhpur, Prayagraj, and neighboring healthcare districts.
Design Your Medical Air Compressor Plant
Speak directly with our senior medical gas engineers in Lucknow. Request customized hospital BOQ designs, clinical airflow calculations, or GeM tender specifications.
