Hospital Stretchers & Emergency Patient Transfer Trolleys
Heavy-duty hydraulic emergency stretchers, surgical SS 304 patient trolleys, and radiolucent trauma transfer systems. Engineered with dual-pedal height adjustment (550–850mm), Trendelenburg tilt (±15°), 200mm central locking castors, and a 5th steering guide wheel for rapid, zero-delay resuscitation across Indian hospitals.

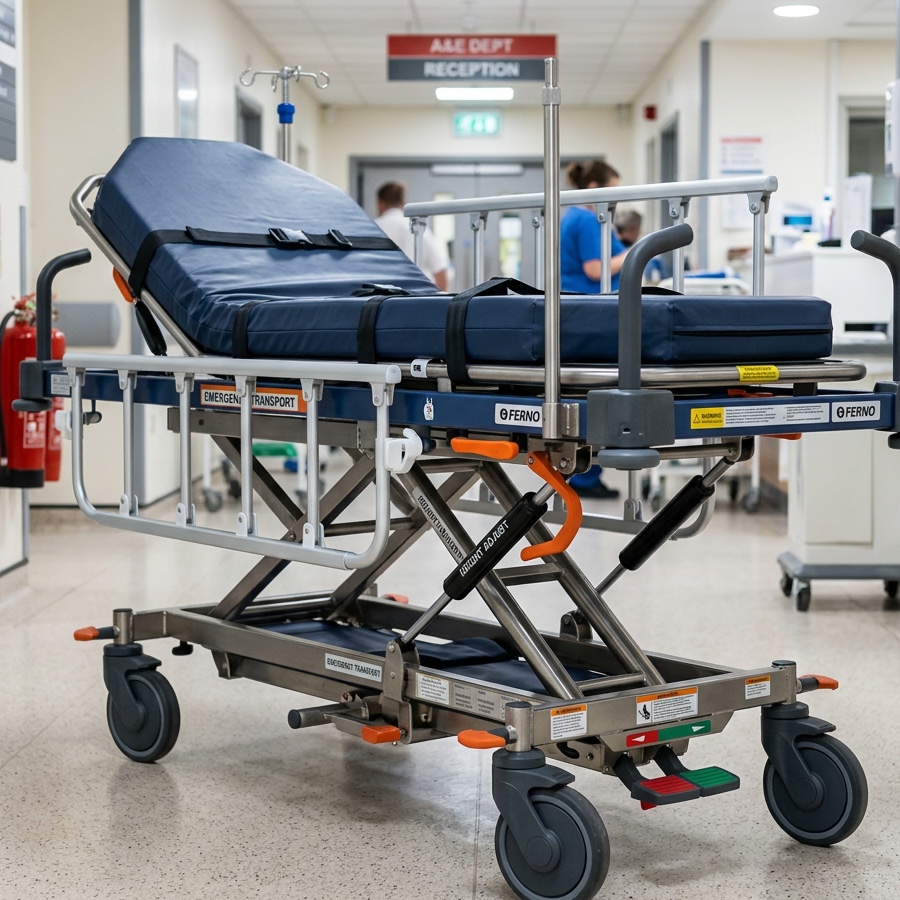

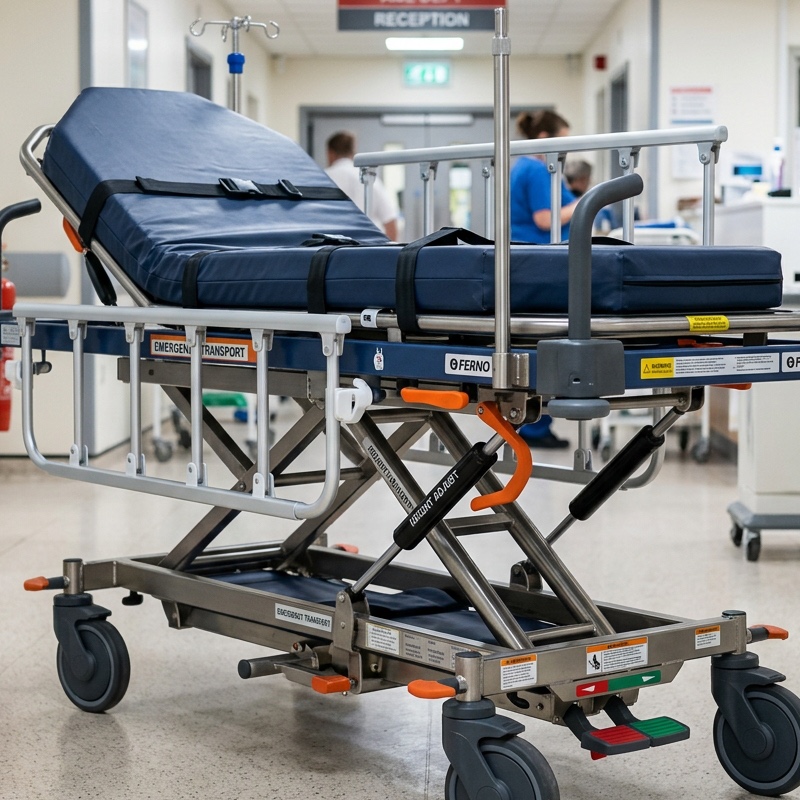

Hydraulic Trauma Stretcher Trolley deployed in high-volume hospital A&E reception corridor.
9 Specialized Patient Stretcher Configurations
Click any model to inspect clinical specifications, hydraulic elevation tolerances, castor braking mechanisms, and departmental applications.

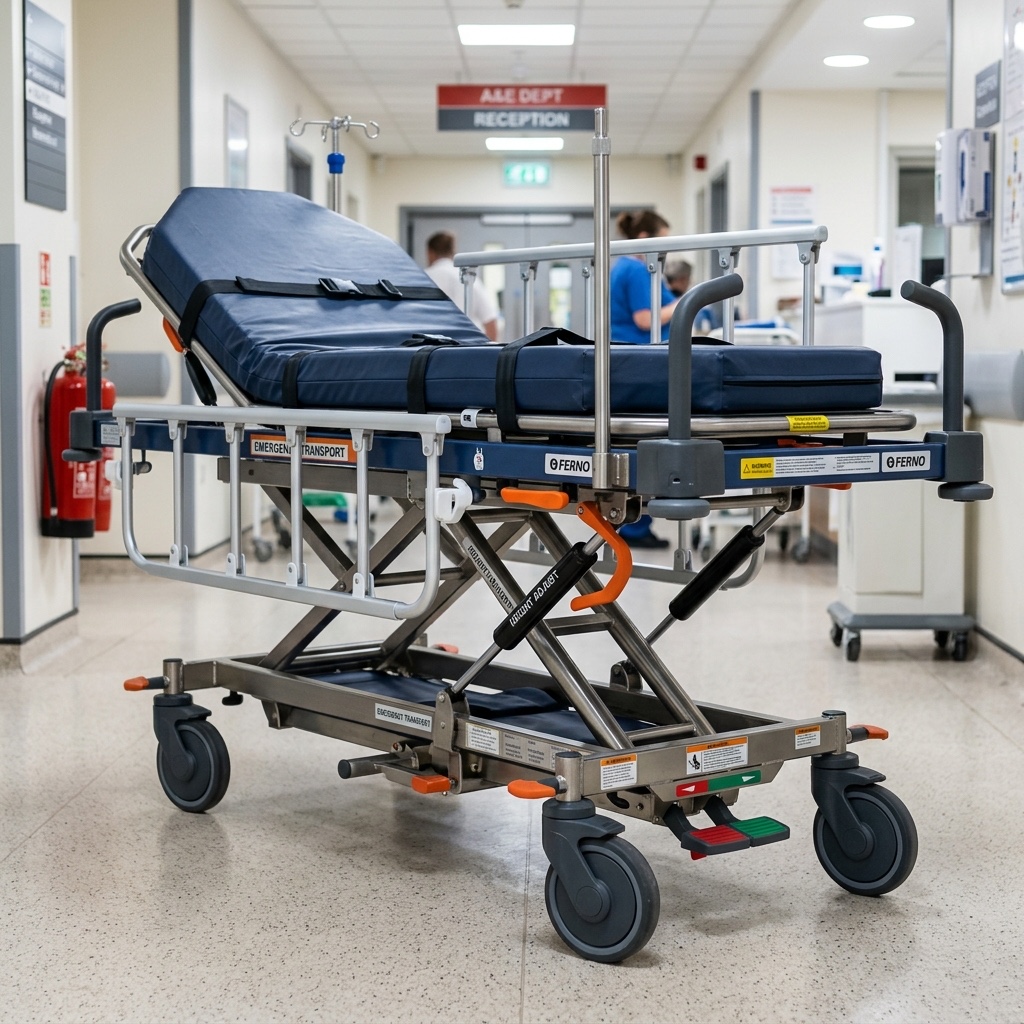

Hydraulic Emergency & Trauma Recovery Stretcher (Dual Pedal Elevation 550–850mm)
Engineered for high-acuity A&E and trauma bays with bilateral foot pump pedals providing smooth stepless height adjustment (550–850mm), gas-spring assisted Trendelenburg and Reverse Trendelenburg (±15°), collapsible safety side rails, and high-density waterproof mattress with quick-release patient restraint belts.
Core Clinical Engineering Metrics

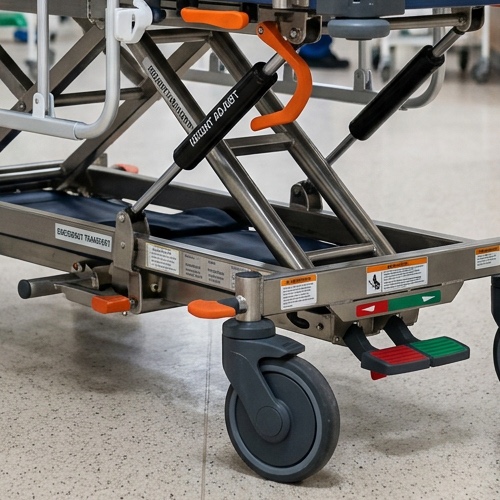

Precision Hydraulic System
Integrated dual foot-pump pedals on either side of the chassis allow nurses and orderlies to effortlessly adjust the deck height between 550mm and 850mm while keeping both hands completely free for patient airway and IV support.
- Heavy-duty enclosed oil-bath hydraulic cylinder
- Dual-action bilateral foot pedals (Up/Down)
- Zero lateral play via reinforced dual scissor arms
5th Steering Wheel & Central Brake

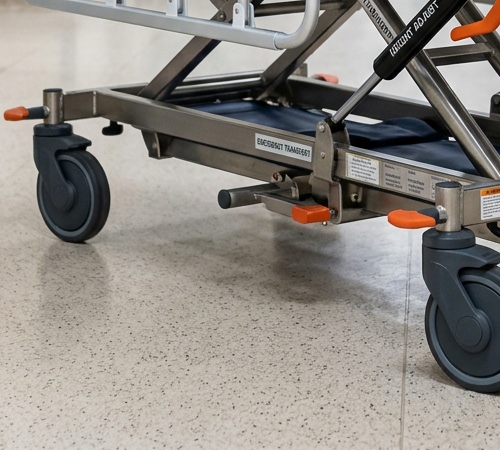

A central pedal bar operates 200mm anti-static dust-guarded castors across Total Lock, Free Swivel, and Directional Lock. The spring-loaded retractable 5th wheel lowers to establish a center pivot, enabling a single porter to navigate 90° corridor turns with zero drift.
- 200mm diameter polyurethane noiseless castors
- Single-foot central braking pedal at head & foot
- Shock-absorbing 5th wheel pivot mechanism
Radiolucent & Trauma Ready
Full-length radio-translucent laminate platform with beneath-deck sliding X-ray cassette tray eliminates the dangerous need to transfer acute spine, pelvic, or femur fracture patients for diagnostic imaging, reducing trauma triage delays by up to 45 minutes.
- C-Arm and mobile X-ray compatible deck
- Trendelenburg / Reverse Trendelenburg ±15°

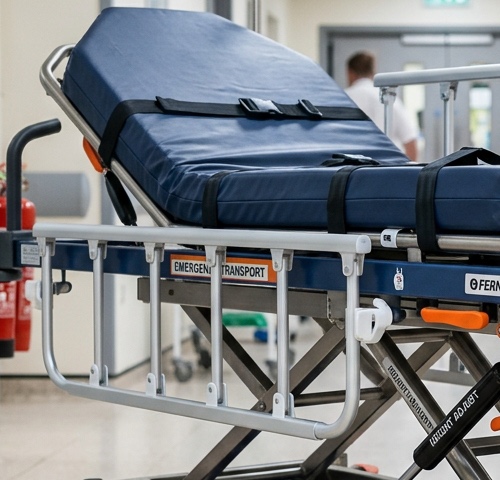

- Quick-drop side rails for zero-gap OT transfer
Technical Specifications: Bio Meditech Emergency Stretcher Series
MDR 2017 & CE Compliant| Parameter | Standard Patient Transfer Trolley | Hydraulic Emergency Stretcher | Advanced Trauma Radiolucent Stretcher |
|---|---|---|---|
| Overall Dimensions | 2100mm L × 650mm W × 800mm H | 2120mm L × 750mm W × 550–850mm H | 2150mm L × 800mm W × 550–880mm H |
| Safe Working Load (SWL) | 180 kg | 220 kg | 250 kg (Bariatric Rated) |
| Height Elevation Drive | Fixed Height / Mechanical Screw | Dual Bilateral Hydraulic Foot Pump | Dual Hydraulic Pump / Electric Motorized |
| Trendelenburg / Reverse | Manual Ratchet (0° to 10°) | Pneumatic Gas-Spring ±15° | Pneumatic Gas-Spring ±18° Continuous |

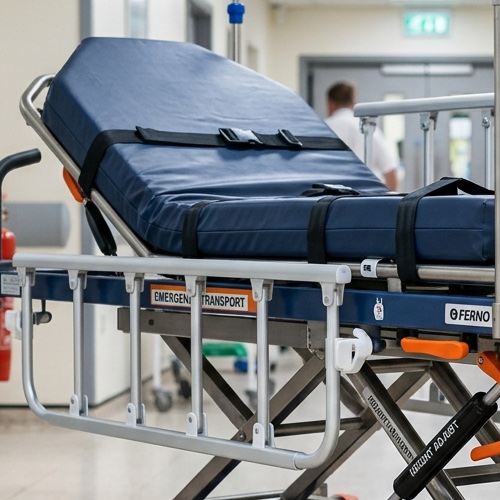

| Backrest Adjustment | 0° to 60° (Ratchet) | 0° to 80° (Gas Spring Assisted) | 0° to 85° (Dual Gas Spring Assisted) |
| X-Ray Translucent Deck | Not Applicable (CRCA/SS Sheet) | Full-length Radiolucent Phenolic Deck | Carbon Fiber / Phenolic Deck + Sliding Cassette Tunnel |
| Castor Wheels & Braking | 150mm Diagonal Brake Castors | 200mm Central Locking + 5th Steering Wheel | 200mm Dust-Proof Central Lock + Retractable 5th Wheel |
| Side Safety Railings | SS 304 Collapsible Railings | Aluminum Alloy Drop-Down Below-Deck Rails | Molded Polymer Dampened Drop-Down Safety Rails |
| Standard Accessories | Telescopic IV Pole, Rexine Mattress | IV Pole, Oxygen Cage, Restraint Straps, Mattress | Telescopic IV Pole, Oxygen Cage, Utility Tray, Restraint Straps |
Request Technical BOQ & Institutional Quote
Submit your hospital patient transfer requirements for immediate factory-direct pricing, technical datasheets, and GeM tender authorization.
