Hospital Trolleys & Emergency Crash Carts
Heavy-duty medical-grade stainless steel (SS 304) dressing trolleys, surgical instrument carts, and modular emergency crash carts. Engineered with 6 color-coded resuscitation drawers, upper defibrillator shelf, cardiac CPR backboard, IV pole, and anti-static 125mm swivel castors for zero-delay patient resuscitation.

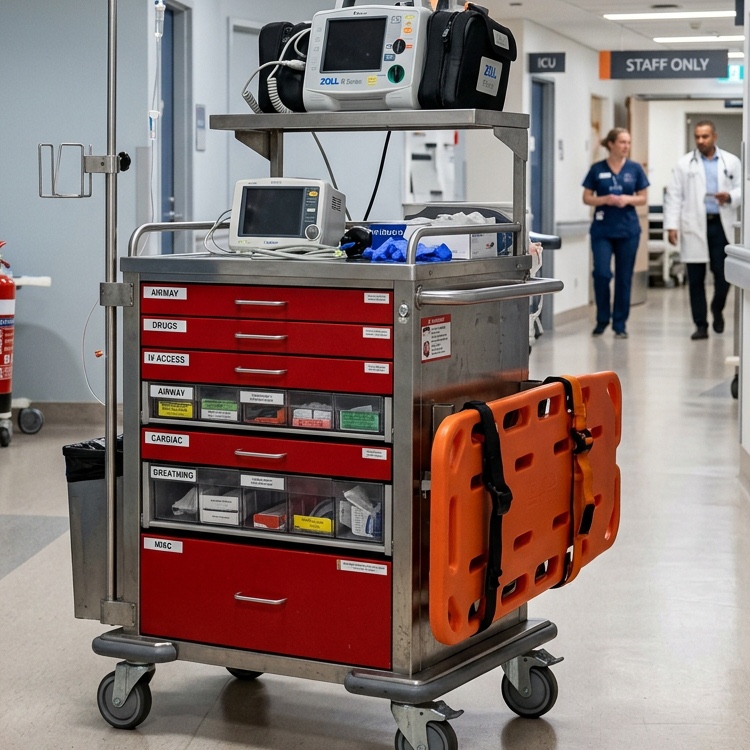

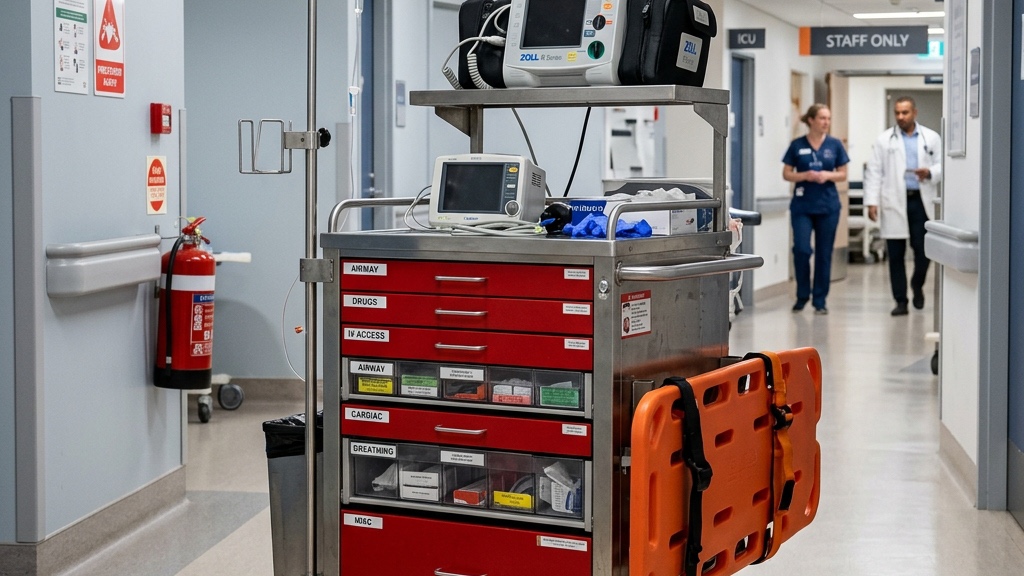

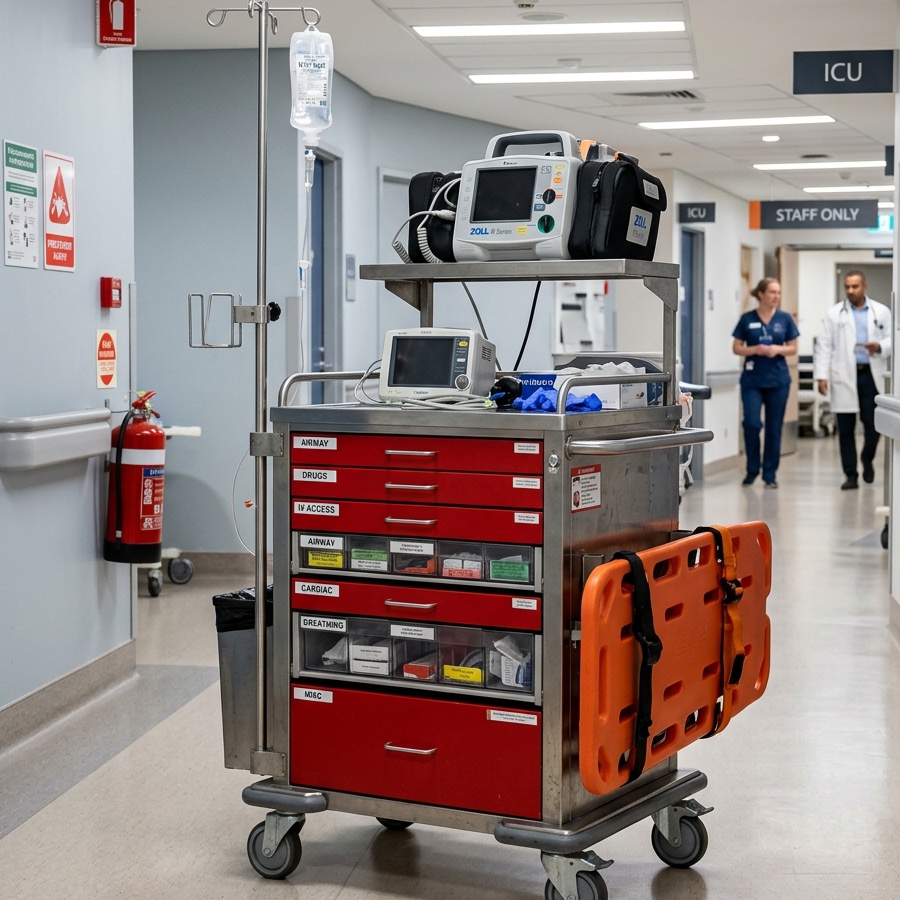

Resuscitation Crash Cart Trolley deployed outside ICU with defibrillator & vital signs monitor.
9 Specialized Hospital Trolley & Cart Systems
Explore our full line of stainless steel dressing carts, instrument tables, and ACLS emergency crash carts engineered for high-acuity Indian hospitals.

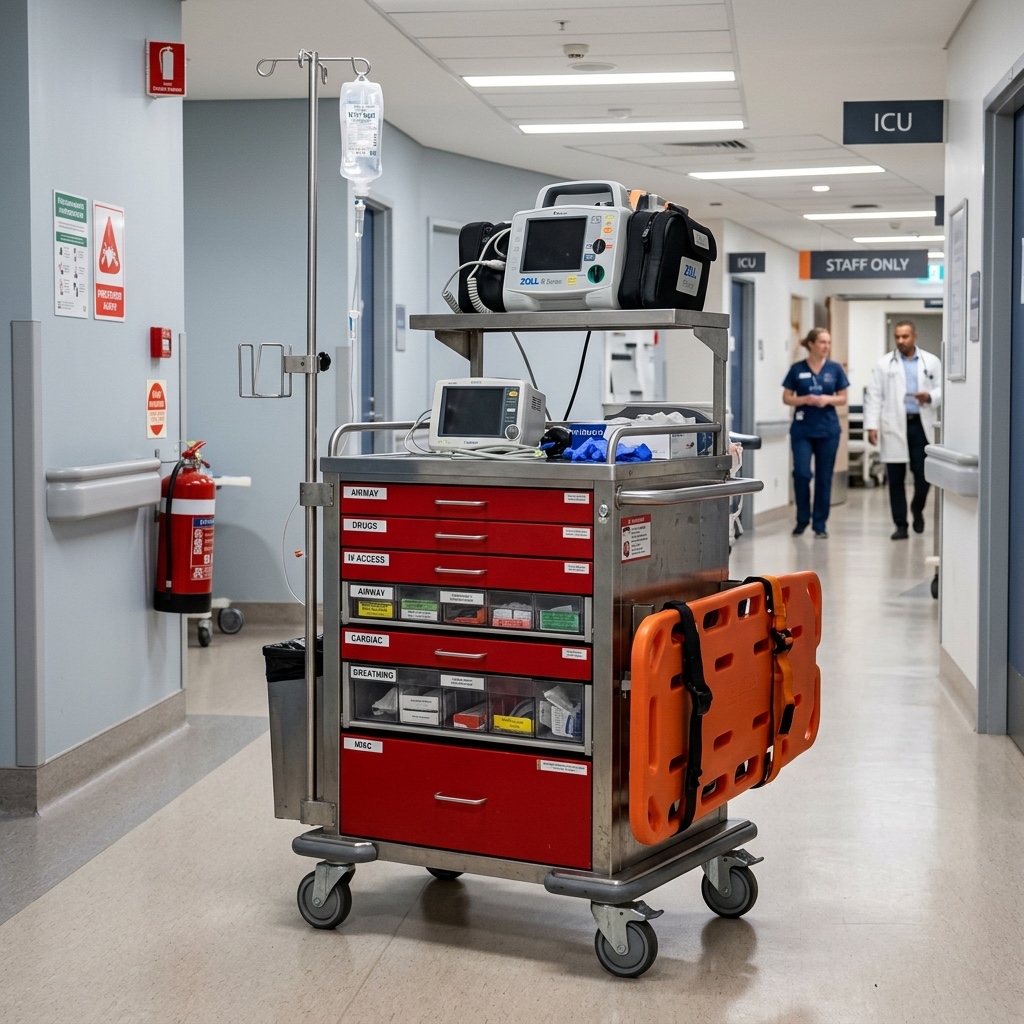

Emergency Resuscitation Crash Cart (6-Tier Color-Coded Drawers)
NABH-compliant emergency resuscitation crash cart constructed with surgical-grade SS 304 frame and modular red drawers. Outfitted with an upper defibrillator platform, patient monitor shelf, telescopic IV infusion pole, side-mounted cardiac arrest CPR backboard, oxygen cylinder holder ring, and disposable tamper-evident breakaway seal lock bar.
Core Technical Construction Metrics

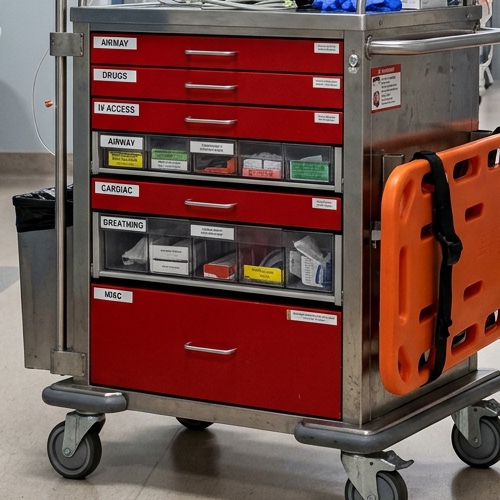

ACLS Color-Coded Drawers
Compliant with international ACLS (Advanced Cardiovascular Life Support) protocols. Six dedicated drawers with high-visibility color-coded tags separate airway equipment, emergency cardiac drugs, IV cannulas, and breathing supplies for instantaneous access during code blue events.
- Heavy-duty ball bearing full-extension slides
- Adjustable acrylic modular partition grids
- One-action breakaway security lock bar
Surgical Grade SS 304 Chassis
Constructed with heavy-gauge seamless surgical stainless steel (SS 304) tubular framework. Electro-polished and chemically passivated to resist corrosion, hospital bleach, chlorhexidine, and harsh sterilization chemicals across OT suites and ICUs.
- Non-magnetic, rust-proof SS 304 tubing
- Pressed seamless shelves with 3-sided guard rails
- Continuous TIG welding without unsealed crevices
High-Mobility & Emergency Fitment

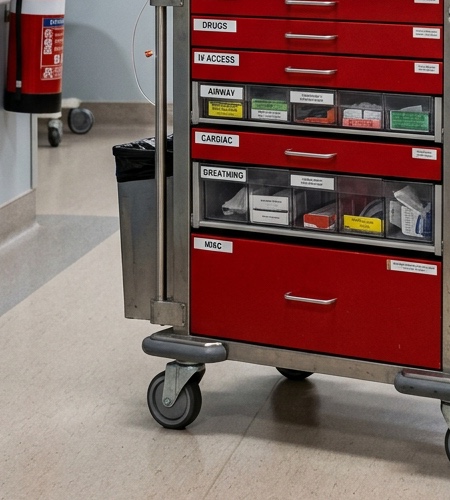

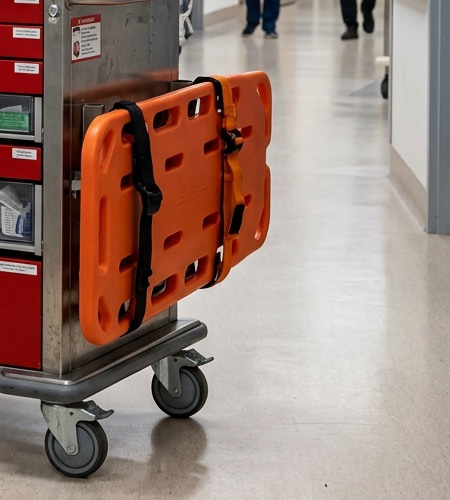

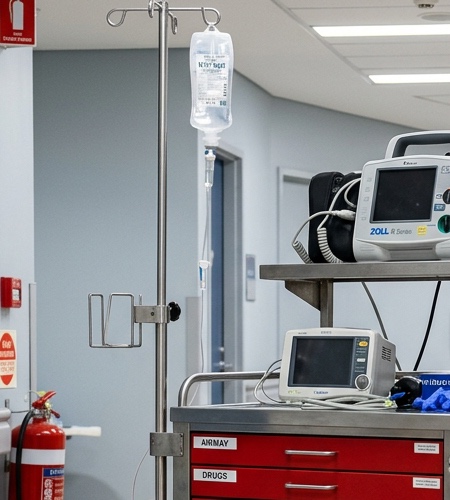

Equipped with 125mm noiseless anti-static polyurethane castors with perimeter impact bumpers. Includes lateral brackets for B-type oxygen cylinders, quick-release CPR backboard, and telescoping stainless steel IV drip infusion pole.

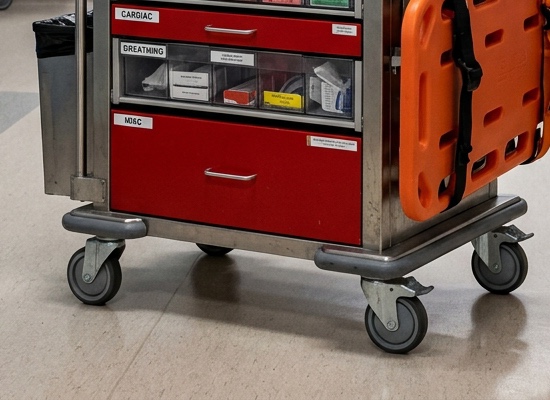

- 125mm sealed precision ball-bearing castors
- Integral all-around perimeter bumper guard

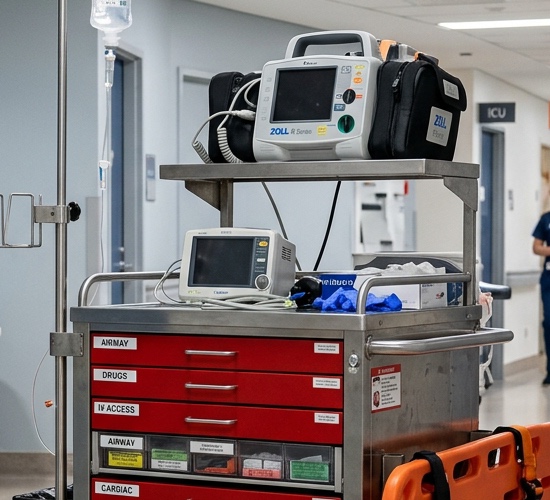

- Upper defibrillator shelf with retention lip
Technical Specifications: Bio Meditech Hospital Trolley Series
NABH & ISO 13485 Compliant| Parameter | SS 304 Dressing & Instrument Trolley | Emergency Resuscitation Crash Cart | Anesthesia & Medicine Distribution Cart |
|---|---|---|---|
| Overall Dimensions | 760mm L × 460mm W × 850mm H | 850mm L × 520mm W × 1010mm H | 750mm L × 480mm W × 980mm H |
| Primary Material | 100% Surgical Grade SS 304 (1.2mm tube) | SS 304 Structure + Powder-Coated Steel Drawers | Aluminum Alloy / ABS Composite + SS 304 Deck |
| Drawer Configuration | 1 or 2 SS 304 Under-Shelf Drawers | 6 Color-Coded Modular Drawers (Full Extension) | 5 Multi-Tier Drawers with Key Lock |
| Load Bearing Capacity | 80 kg Distributed | 150 kg Distributed | 120 kg Distributed |
| Castor Wheels | 100mm Synthetic Rubber Swivel Castors (2 Brake) | 125mm Anti-Static Polyurethane (2 Total Lock Brake) | 100mm / 125mm Twin-Wheel Castors |
| Locking Mechanism | Standard Key Lock on Drawers | Centralized Breakaway Tamper-Evident Seal Bar | Central Key Lock / Digital Code Lock |
| Defibrillator & Monitor Shelf | Not Applicable | Adjustable Swivel Stainless Steel Top Shelf | Laptop / Tablet Swivel Arm Mount |
| Standard Accessories | 3-Sided Guard Rail, Stainless Steel Bowl & Bucket | Defibrillator Shelf, CPR Board, IV Pole, O2 Ring, Waste Bin | Sliding Work Surface, Waste Bin, Sharps Bracket |
